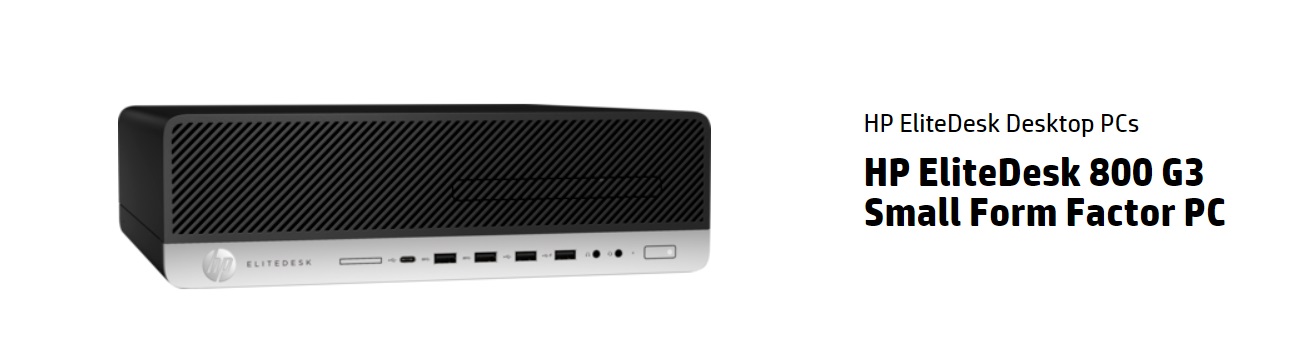

HP EliteDesk 800 G3 Small Form Factor

Powered for the enterprise, the HP EliteDesk 800 SFF is one of HP’s most secure and manageable PCs featuring advanced performance, and configurability in a space saving, stylishly redesigned chassis for the modern workplace.


Thông số kỹ thuật

Hệ điều hành

Windows 10 Pro 64 – HP recommends Windows 10 Pro.1
Windows 10 Home 641
Windows 10 Home Single Language 641
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)3
FreeDOS 2.0

Bộ xử lý

Intel® Core™ i7-7700 with Intel HD Graphics 630 (3.6 GHz, up to 4.2 GHz with Intel Turbo Boost, 8 MB cache, 4 cores);

Intel® Core™ i5-7500 with Intel HD Graphics 630 (3.4 GHz, up to 3.8 GHz with Intel Turbo Boost, 6 MB cache, 4 cores);

Intel® Core™ i5-7600 with Intel HD Graphics 630 (3.5 GHz, up to 4.1 GHz with Intel Turbo Boost, 6 MB cache, 4 cores);

Intel® Core™ i3-7100 with Intel HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores);

Intel® Core™ i3-7300 with Intel HD Graphics 630 (4 GHz, 4 MB cache, 2 cores);

Intel® Pentium® G4600 with Intel HD Graphics 630 (3.6 GHz, 3 MB cache, 2 cores);

Intel® Pentium® G4620 with Intel HD Graphics 630 (3.7 GHz, 3 MB cache, 2 cores);

Intel® Celeron™ G3930 with Intel HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores);

Intel® Celeron™ G3950 with Intel HD Graphics 610 (3 GHz, 2 MB cache, 2 cores);

Intel® Core™ i7-6700 with Intel HD Graphics 530 (3.4 GHz, up to 4.0 GHz with Intel Turbo Boost, 8 MB cache, 4 cores);

Intel® Core™ i5-6600 with Intel HD Graphics 530 (3.3 GHz, up to 3.9 GHz with Intel Turbo Boost, 6 MB cache, 4 cores);

Intel® Core™ i5-6500 with Intel HD Graphics 530 (3.2 GHz, up to 3.6 GHz with Intel Turbo Boost, 6 MB cache, 4 cores);

Intel® Core™ i3-6100 with Intel HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores)

Chipset

Intel® Q270

Memory

Up to 64 GB DDR4-2400 SDRAM 6
Standard memory note: Transfer rates up to 2400 MT/s

Internal Storage Devices

500 GB up to 2 TB 3.5" SATA HDD (7200 rpm)7
500 GB up to 1 TB 2.5" SATA SSHD (5400 rpm)7
256 GB up to 512 GB 2.5" SATA SED7
256 GB up to 1 TB HP Turbo Drive G2 TLC SSD (PCIe)7
128 GB up to 512 GB 2.5" SATA SSD7
up to 1 TB 3.5" SATA SSHD (7200 rpm)7
500 GB up to 1 TB 2.5" SATA HDD (7200 rpm)

Ổ đĩa quang

Slim DVD-ROM; Slim DVD-Writer

Card đồ họa

Integrated: Intel® HD Graphics 530; Intel® HD Graphics 630; Intel® HD Graphics 6109,10,11,21
Discrete: NVIDIA® GeForce® GT730 HDMI (1 GB); NVIDIA® GeForce® GT 730 (2 GB, with DisplayPort™ display support)

Âm thanh

Integrated Realtek ALC221 with combo microphone/headphone jack, line-in and line-out rear ports (3.5 mm), internal speaker

Kết nối

LAN: Intel® I219LM Gigabit Network Connection LOM; Intel® Ethernet I210-T1 PCIe x1 GbE network interface card (optional)
WLAN: Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card vPro™; Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™; Intel® 7265
802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™

Khe mở rộng

1 M.2 2230 for optional wireless NIC; 1 M.2 2280 for optional SSD drive; 2 low-profile PCIe (x1); 2 low-profile PCIe x16; PCI Express x16 (v3.0)(wired as a x4) 6.35 cm (2.5") low profile, 16.76 cm (6.6") length, 35 W max power

Cổng

Front: 1 SD 4 card reader (optional); 1 USB Type-C™; 2 USB 3.1 Gen 1; 1 USB 2.0; 1 USB 2.0 (fast charging); 1 Headphone connector; Universal audio jack with CTIA headset support
Back: 1 audio line in; 1 RJ-45; 1 power connector; 1 audio out; 2 DisplayPort™; 2 USB 2.0; 4 USB 3.1 Gen 1; 3 optional ports
Back (optional): 1 choice of 1 HDMI; 1 DisplayPort™; 1 VGA; 1 USB 3.1 Type-C™ (DisplayPort™ alternate mode or 15 W output); 1 choice of serial and PS/2; 1 choice of serial port

Thiết bị đầu vào

HP Conferencing Keyboard; HP USB Smart Card (CCID) Keyboard; HP USB Business Slim Keyboard; HP PS/2 Business Slim Keyboard; HP USB Grey Business Slim Keyboard
HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP Grey V2 Mouse; HP USB Optical Mouse; HP USB Hardened Mouse

Phần mềm

HP business PCs are shipped with a variety of software titles including: HP BIOSphere with Sure Start G3, CyberLink Power Media Player, Native Miracast Support, HP ePrint Driver, HP
Support Assistant, Skype for Business Certified. Please refer to this product's quick spec document for a full list of preinstalled software

Nguồn

180 W, up to 82% efficient, active PFC


Kích thước

100 x 338 x 308 mm
(Dimensions are for tower orientation)



Trọng lượng

5.31 kg
(Exact weight depends on configuration)

Môi trường

Low halogen

Tiết kiệm năng lượng

ENERGY STAR® certified and EPEAT® registered configurations available

Bảo hành

3-year limited warranty including 3 years of parts, labour, and next-business-day onsite service. Terms and conditions vary by country. Certain restrictions and exclusions apply
