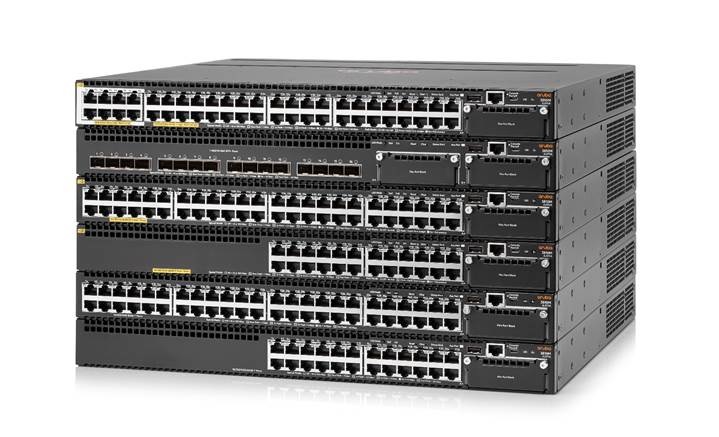

Aruba 3810 Switch Series

Technical Specifications

Differentiator

• The Aruba 3810 Switch Series is a powerful Layer 3 switch series with backplane stacking, low latency and resiliency for a better mobile-first campus experience.

Ports

• 48 10/100/1000 ports, maximum or 16 1/10GbE SFP+ ports, depending on model, all supporting MACSec
• 8 HPE Smart Rate Multi-Gigabit (1/2.5/5/10GBASE-T) ports, available on select model
• 2 open I/O module slots, maximum, depending on model
• PoE/PoE+ on selected models

Memory and processor

• Dual ARM Coretex A9 @ 1 GHz
• 2 GB DDR3 SDRAM
• Packet buffer size: 13.5 MB Internal

Latency

• 1000 Mb Latency: < 2.8 µs
• 10 Gbps Latency: < 1.8 µs
• 40 Gbps Latency: < 1.5 µs

PoE capability

• 1440 W maximum
• Depending on model and configuration

Stacking capabilities

• Virtual
• 10 switches

Management features

• Aruba AirWave Network Management
• Aruba Central
• IMC - Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• Out-of-band management (RJ-45 Ethernet)
• In-line and out-of-band
• Out-of-band management (serial RS-232C or micro USB)

Input voltage

• 100-240 VAC
• Depending on installed options, model and configuration

Product dimensions (H x W x D)

17.42 x 16.98 x 1.73 in

Warranty

• Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases: for details on the software releases available with your product purchase
• refer to www.hpe.com/networking/warrantysummary.
